PL-01

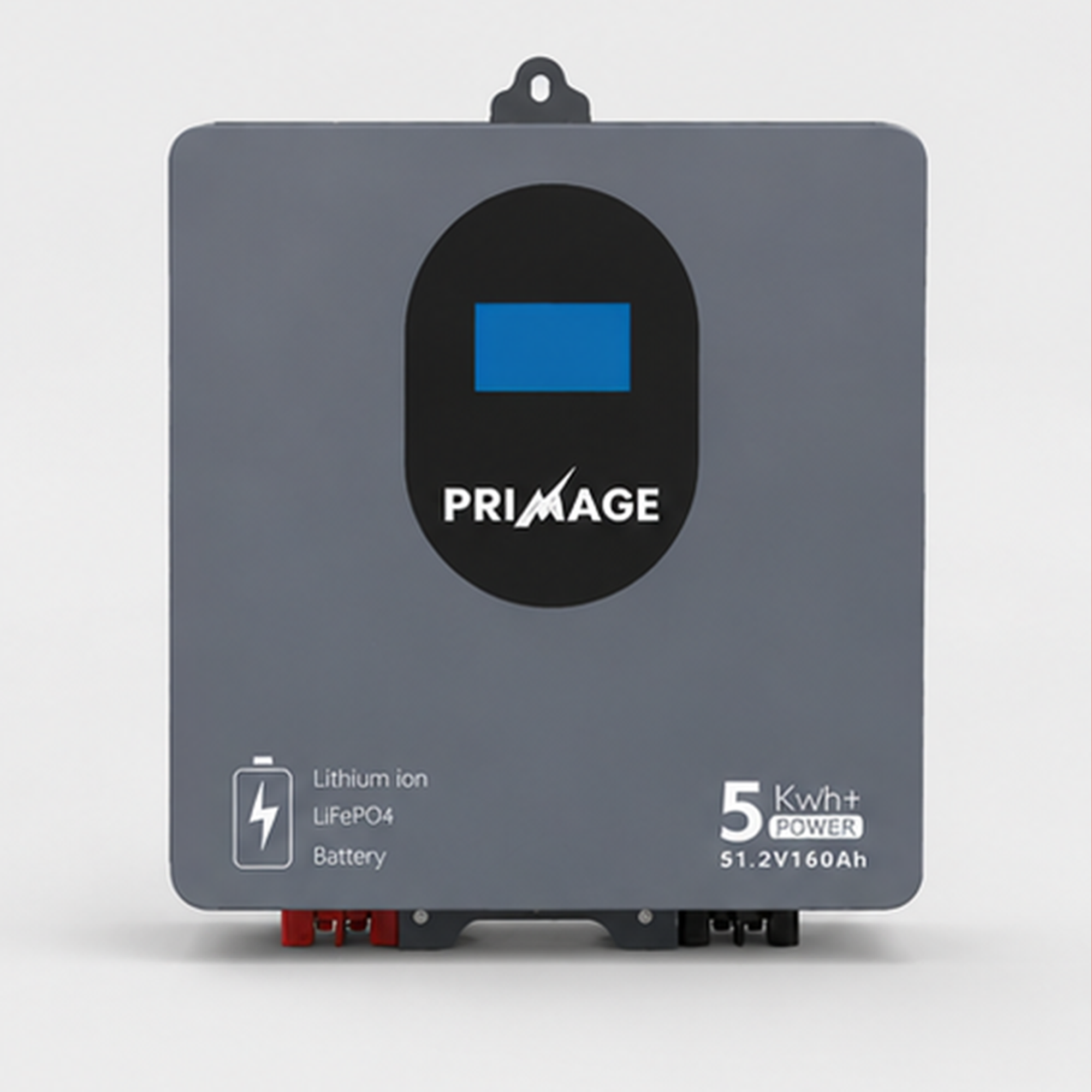

PL-01 is a high-performance LiFePO₄ battery designed for residential and small commercial energy storage.
It delivers safe, reliable, and long-lasting power with flexible capacity expansion.

  • 5.12kWh Capacity — 51.2V 100Ah configuration
  • 6000+ Cycles — Long service life with LFP technology
  • Smart & Expandable — Active BMS and up to 15 units in parallel

A dependable energy storage solution for modern solar and backup power systems.

Category Product ID: 28157
WhatsApp Number

Key Benefits

  • Expandable Energy Storage — Connect up to 15 units in parallel for up to 76.8kWh capacity.
  • Long Service Life — LFP battery cells provide 6000+ cycles.
  • Safe & Reliable — Integrated BMS provides multiple protection functions.
  • Active Cell Balancing — Helps maintain balanced battery performance and extended service life.
  • Easy Installation — Designed to support wall-mounted installation.
  • Wide Compatibility — Communication compatibility with many mainstream inverters.
  • Residential & Commercial Ready — Suitable for homes and small commercial energy storage applications.

Recommended Applications

  • Residential solar energy storage
  • Home backup power
  • Small commercial energy storage
  • Solar PV storage systems
  • Backup energy systems
  • Renewable energy applications

Data Sheet

Model PL-02
Battery Type LiFePO₄
Rated voltage 51.2V
Rated capacity 100Ah
Energy 5.12KWh
Charging cut-off voltage 57.6V
Discharge cut-off voltage 43.2V
Internal resistance ≤20mΩ
Charging current Recommended 50A/Maximum 100A
Discharge current Maximum 100A
Instantaneous discharge current 150A(1S)
Cycle life ≥6000times (80%DOD @25°C/0.2C)
Working temperature range Charge 0~45°C/Discharge -20~60°C
Storage temperature range -10~45°C
Storage of electric charge SOC 30%~50%
Self-discharge ≤2%/Month
Communication RS232/RS485/CAN
Bluetooth/WiFi Function  Optional
Expand Up to 15 units in parallel
Compatible with inverter Solis/Deye/luxpower/Voltronic/Hoymiles/Growatt/Goodwe/SMA/Victron/Megarevo etc
Waterproof rating IP 20
Overall dimensions L470*W455*H163±2mm
Net weight 43Kg
Certification UN38.3/MSDS
Installation method Wall Installation/Floor installation

Description

The PL-01 is a compact and dependable lithium battery energy storage system developed for residential and small commercial power applications. Using advanced LiFePO₄ (LFP) battery cells, it delivers dependable performance, long service life, and enhanced safety for everyday energy storage requirements.

With a 51.2V, 100Ah configuration and 5.12kWh energy capacity per unit, the PL-01 can be expanded according to the required energy demand. Up to 15 units can be connected in parallel, providing an expandable storage capacity of up to 76.8kWh.

The integrated Battery Management System (BMS) provides essential protection against short circuits, overcharging, over-discharging and other operating conditions. Its active balancing technology helps maintain battery cell balance, supporting improved performance and longer battery life.

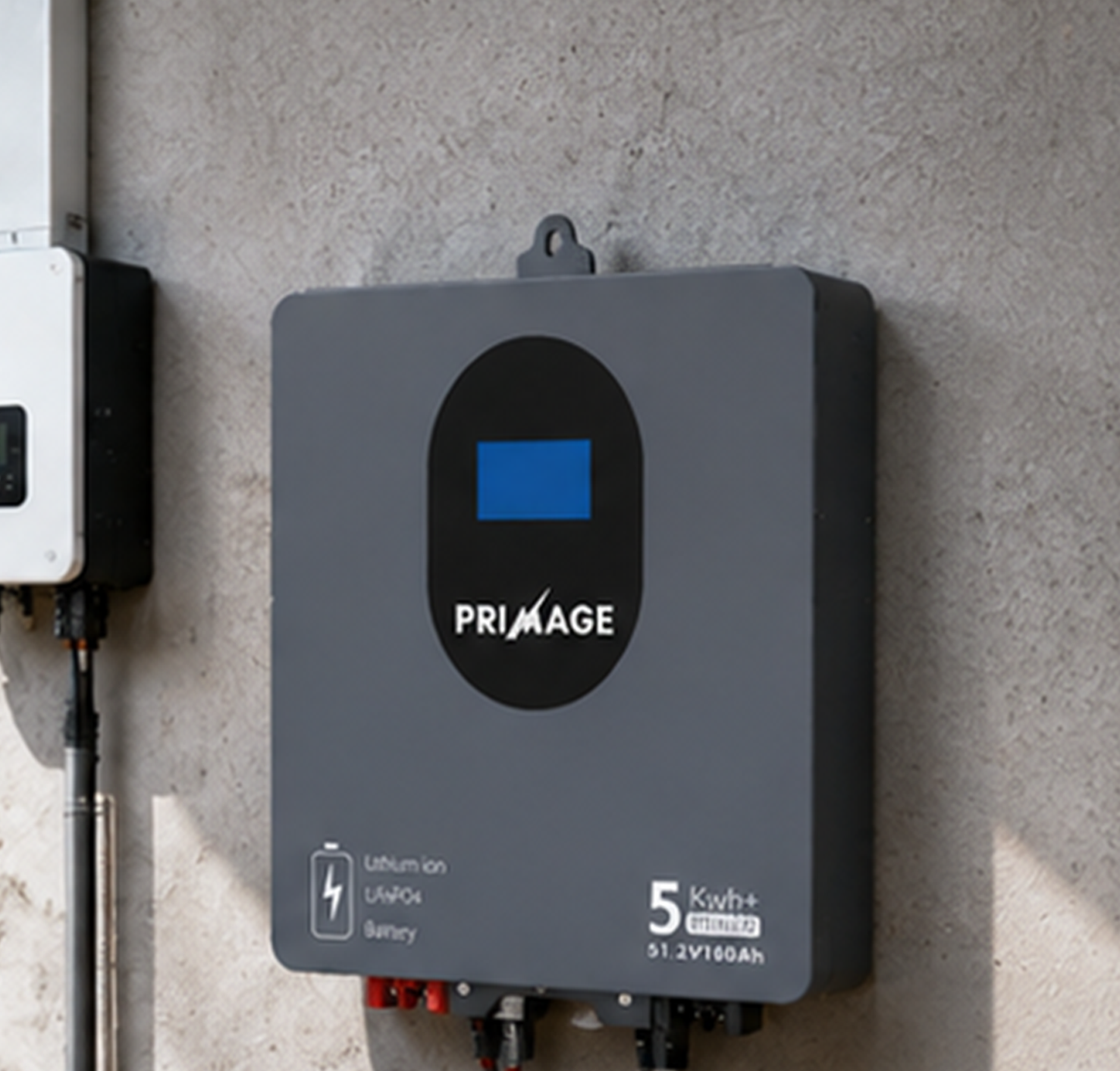

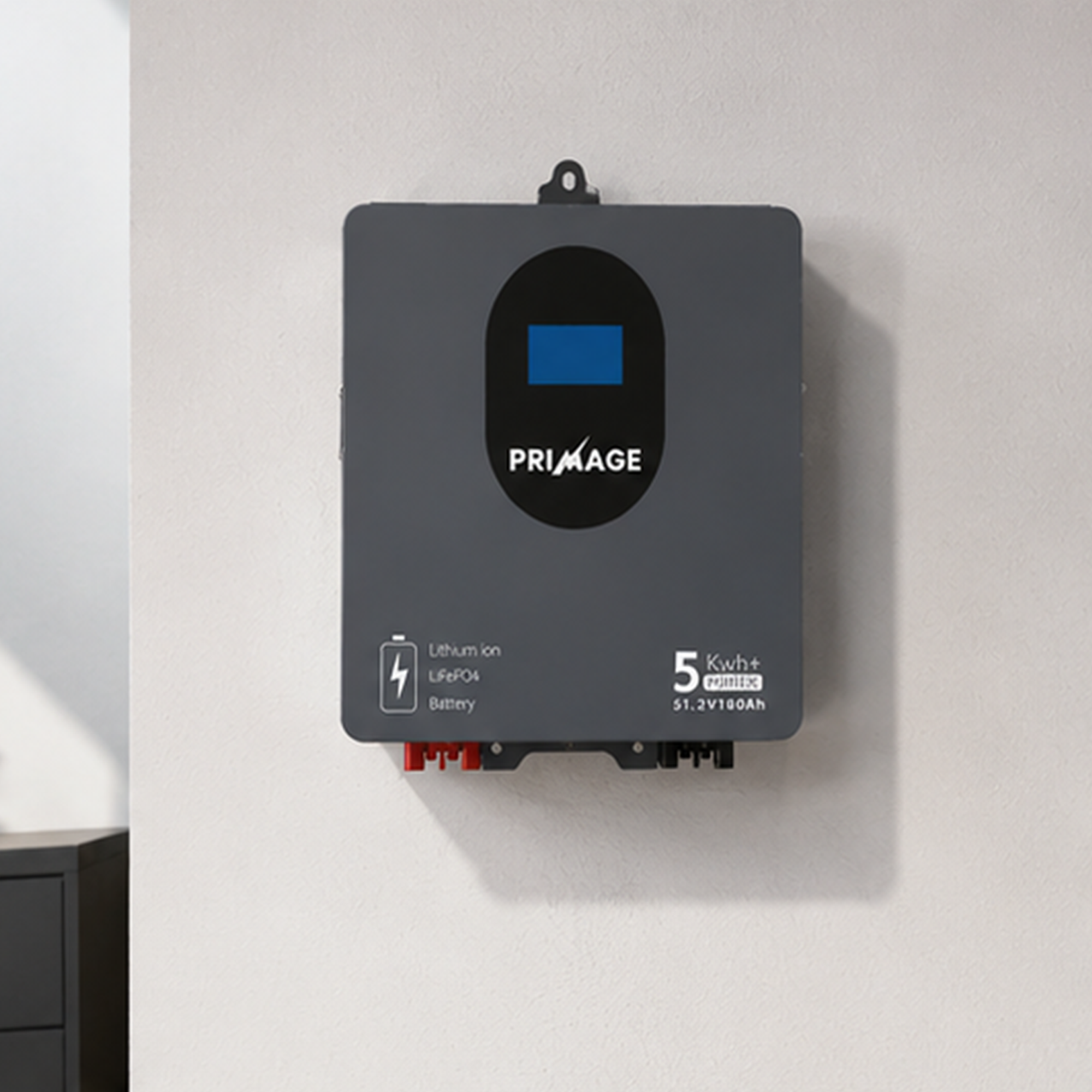

Designed for convenient installation, the PL-01 supports wall-mounted deployment and communication compatibility with many mainstream inverters, making it suitable for integration into a wide range of solar and energy storage systems.

With a rated life of 6000+ cycles, the PL-01 is built to provide reliable energy storage over an extended operating period.
